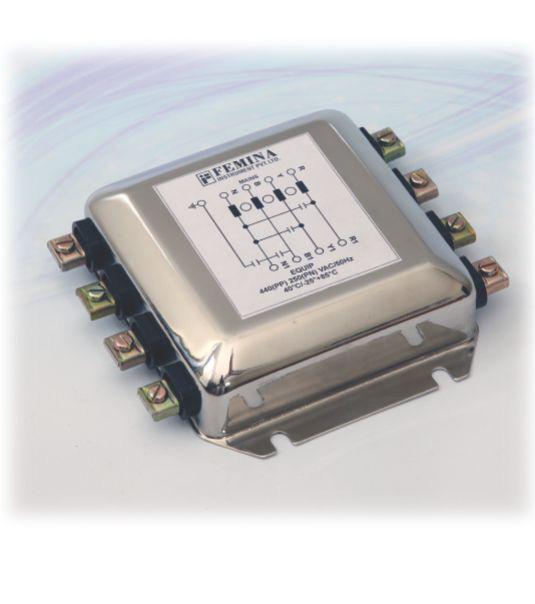

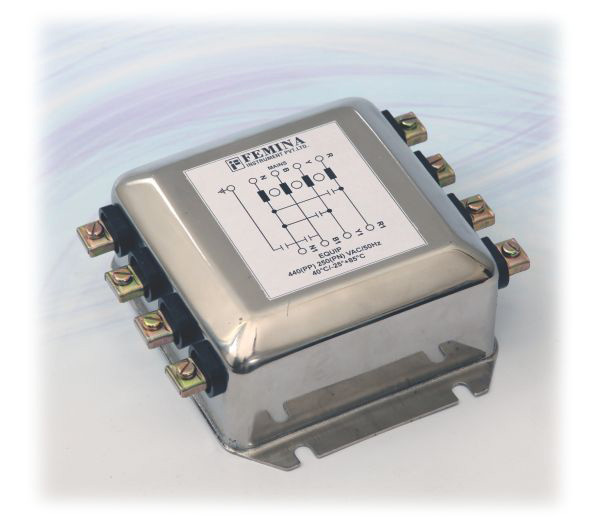

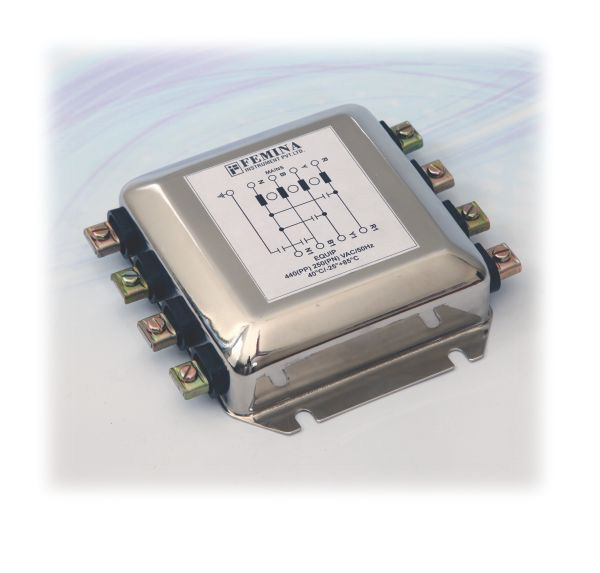

RFI/EMI FILTERS
THREE PHASE |
|
|
| Product Code |
FIF 312-3 |
FIF 312-6 |
FIF 312-10 |
FIF 312-15 |
| Rated Amp. |
3 AMP. |
6 AMP. |
10 AMP. |
15 AMP. |
| Rated Voltage |
250 VAC P-N,440 VAC |
250 VAC P-N,440 VAC |
250 VAC P-N,440 VAC |
250 VAC P-N,440 VAC |
| |
P-P at 50 Hz |
P-P at 50 Hz |
P-P at 50 Hz |
P-P at 50 Hz |
| H.V Test for 30 Sec. |
2.0 KVAC |
2.0 KVAC |
2.0 KVAC |
2.0 KVAC |
| Leakage Current |
2 x 0.3mA |
2 x 0.3mA |
2 x 0.3mA |
2 x 0.3mA |
| Temparature rise |
45° To 50°c |
45° To 50°c |
45° To 50°c |
45° To 50°c |
| Insulation |
|
|
|
|
| Resistance |
>300M ohm |
>300M ohm |
>300M ohm |
>300M ohm |
| At 500 V.D.C. |
|
|
|
|
|
| |
|
|
|
|
| Product Code |
FIF 313-20 |
FIF 313-30 |
FIF 313-40 |
| Rated Amp. |
20 AMP. |
30 AMP. |
40 AMP. |
| Rated Voltage |
250 VAC P-N,440 VAC |
250 VAC P-N,440 VAC |
250 VAC P-N,440 VAC |
| |
P-P at 50 Hz |
P-P at 50 Hz |
P-P at 50 Hz |
| H.V Test for 30 Sec. |
2.0 KVAC |
2.0 KVAC |
2.0 KVAC |
| Leakage Current |
2 x 0.3mA |
2 x 0.3mA |
2 x 0.3mA |
| Temparature rise |
45° To 50°c |
45° To 50°c |
45° To 50°c |
| Insulation |
|
|
|
| Resistance |
>300M ohm |
>300M ohm |
>300M ohm |
| At 500 V.D.C. |
|
|
|
|
| |
|
|
|
|
| Product Code |
FIF 314-50 |
FIF 314-60 |
FIF 314-80 |
| Rated Amp. |
50 AMP. |
60 AMP. |
80 AMP. |
| Rated Voltage |
250 VAC P-N,440 VAC |
250 VAC P-N,440 VAC |
250 VAC P-N,440 VAC |
| |
P-P at 50 Hz |
P-P at 50 Hz |
P-P at 50 Hz |
| H.V Test for 30 Sec. |
2.0 KVAC |
2.0 KVAC |
2.0 KVAC |
| Leakage Current |
2 x 0.3mA |
2 x 0.3mA |
2 x 0.3mA |
| Temparature rise |
45° To 50°c |
45° To 50°c |
45° To 50°c |
| Insulation |
|
|
|
| Resistance |
>300M ohm |
>300M ohm |
>300M ohm |
| At 500 V.D.C. |
|
|
|
|
|
|
|
