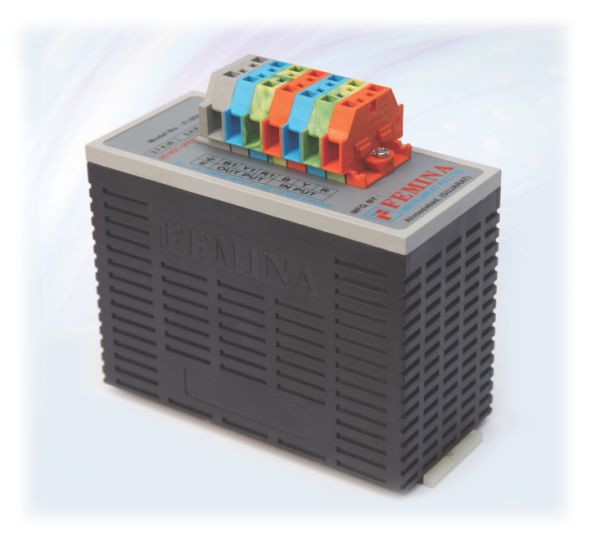

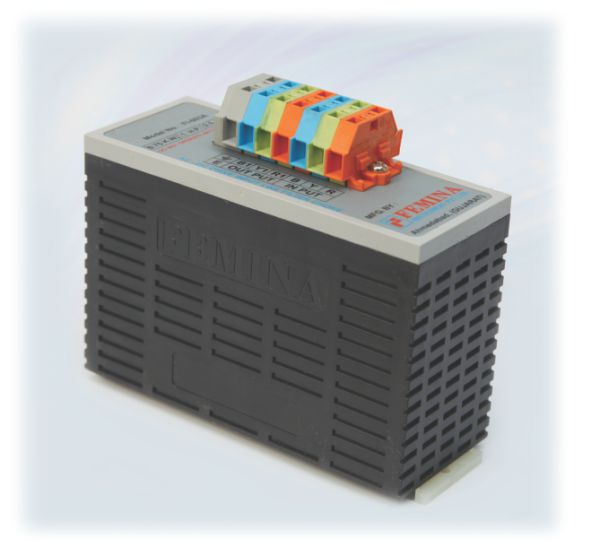

INPUT LINE FILTER CHOKE
THREE PHASE CHANEL MOUNT |
|
|
| Product Code |
FI-003A |
FI-003B |
FI-003C |
| Rated H.P. |
1 H.P. |
2 H.P. |
3 H.P. |
| Rated Amp. |
2.5 AMP. |
4.5 AMP. |
6.5 AMP. |
| Rated K.W. |
0.75 K.W. |
1.5 K.W. |
2.2 K.W. |
| Rated Voltage |
440 V.A.C. 50 Hz. |
440 V.A.C. 50 Hz. |
440 V.A.C. 50 Hz. |
| H.V. Test For 30 Sec. |
N/A ABS BODY |
N/A ABS BODY |
N/A ABS BODY |
| Leakage Current |
2 x 0.3mA |
2 x 0.3mA |
2 x 0.3mA |
| Temparature rise |
45° To 50°c |
45° To 50°c |
45° To 50°c |
| Insulation Resistance |
>300M ohm |
>300M ohm |
>300M ohm |
| At 500 V.D.C. |
|
|
|
|
| |
|
|
|
|
| Product Code |
FI-004A |
FI-004B |
FI-004C |
| Rated H.P. |
5 H.P |
7.5 H.P. |
10 H.P. |
| Rated Amp. |
10 AMP. |
15 AMP. |
20 AMP. |
| Rated K.W. |
3.7 K.W. |
5.5 K.W. |
7.5 K.W. |
| Rated Voltage |
440 V.A.C. 50 Hz. |
440 V.A.C. 50 Hz. |
440 V.A.C. 50 Hz. |
| H.V. Test For 30 Sec. |
N/A ABS BODY |
N/A ABS BODY |
N/A ABS BODY |
| Leakage Current |
2 x 0.3mA |
2 x 0.3mA |
2 x 0.3mA |
| Temparature Rise |
45° To 50°c |
45° To 50°c |
45° To 50°c |
| Insulation Resistance |
>300M ohm |
>300M ohm |
>300M ohm |
| At 500 V.D.C. |
|
|
|
|
|
|
|
