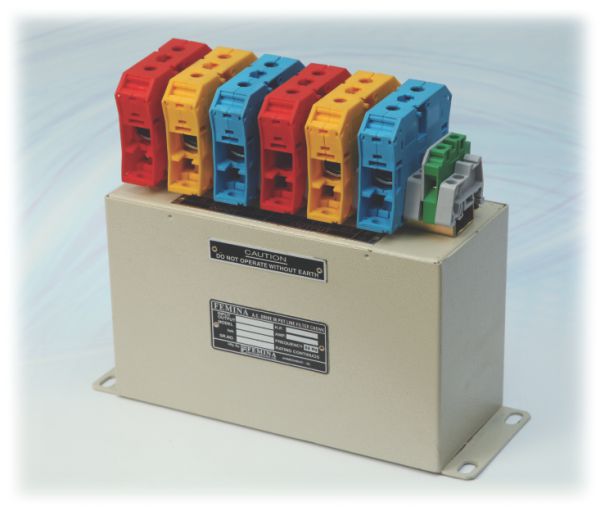

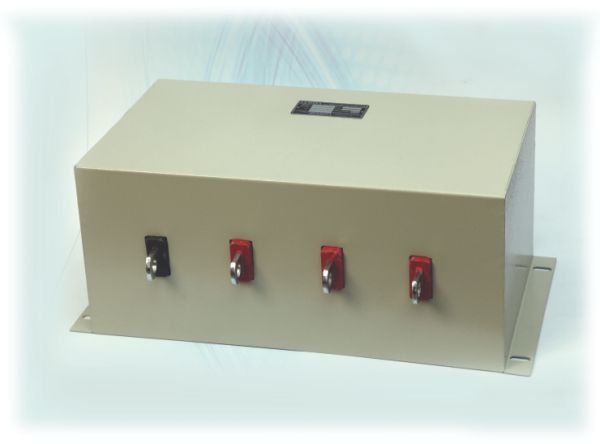

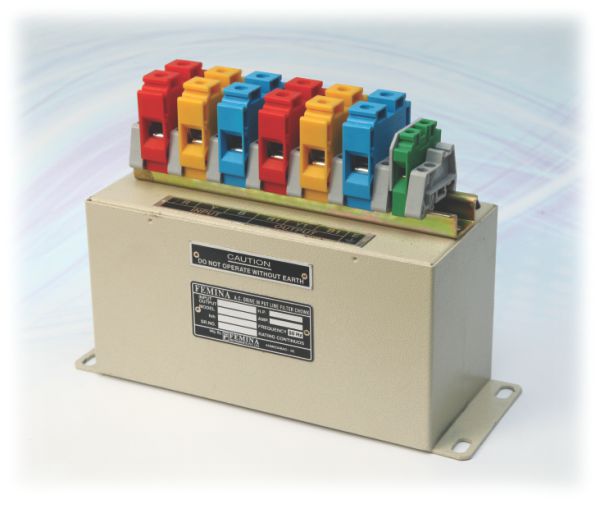

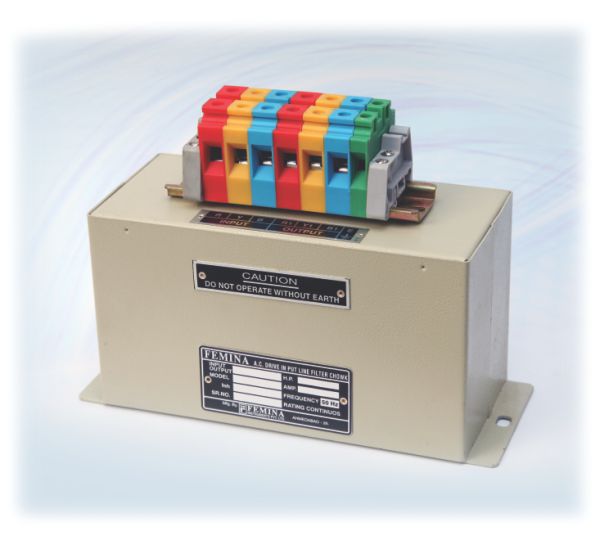

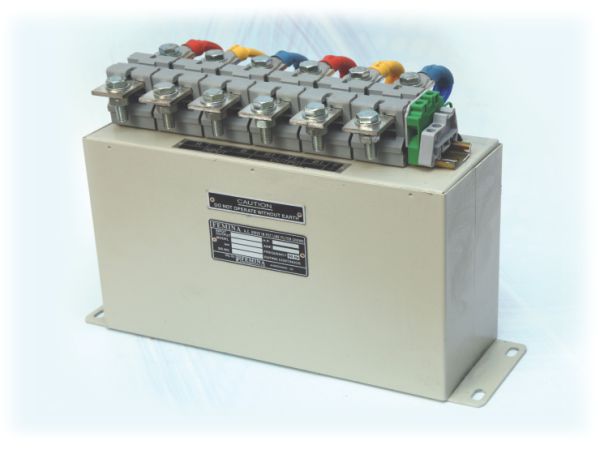

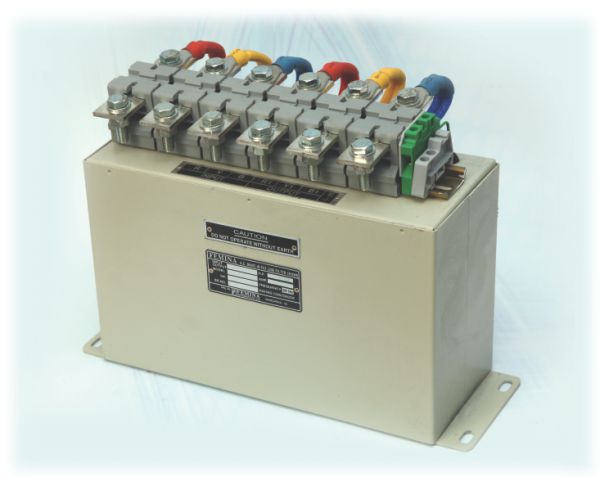

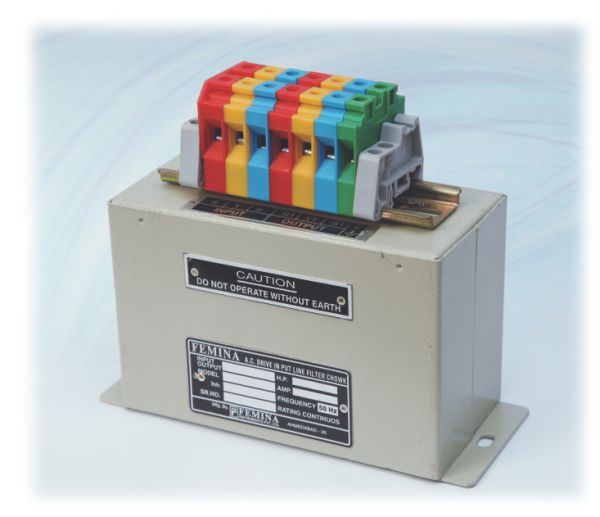

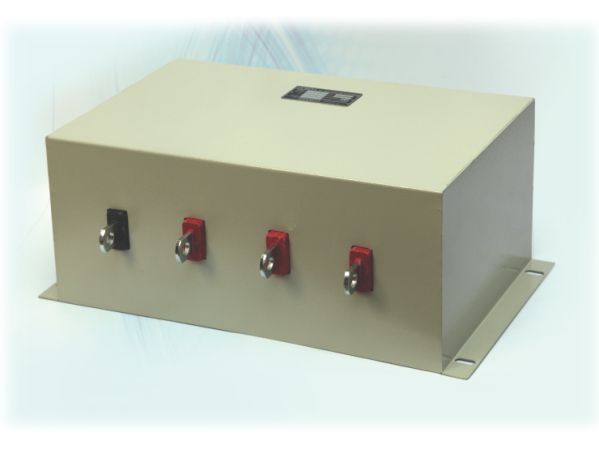

INPUT LINE FILTER CHOKE

METAL BODY CHASES MOUNTING

Product Code	FI-005A	FI-005B
Rated H.P.	15 H.P.	20 H.P.
Rated Amp.	30 AMP.	40 AMP.
Rated K.W.	11 K.W.	15 K.W.
Rated Voltage	440 V.A.C. 50 Hz.	440 V.A.C. 50 Hz.
H.V. Test For 30 Sec.	2 K.V.A.	2 K.V.A.
Leakage Current	2 x 0.3mA	2 x 0.3mA
Temparature Rise	45° To 50°c	45° To 50°c
Insulation Resistance	>300M ohm	>300M ohm
At 500 V.D.C.

Product Code	FI-005A	FI-005B
Rated H.P.	25 H.P.	30 H.P.
Rated Amp.	50 AMP.	60 AMP.
Rated K.W.	18.5 K.W.	22 K.W.
Rated Voltage	440 V.A.C. 50 Hz.	440 V.A.C. 50 Hz.
H.V. Test For 30 Sec.	2 K.V.A.	2 K.V.A.
Leakage Current	2 x 0.3mA	2 x 0.3mA
Temparature Rise	45° To 50°c	45° To 50°c
Insulation Resistance	>300M ohm	>300M ohm
At 500 V.D.C.

Product Code	FI-007A	FI-007B	FI-007C
Rated H.P.	40 H.P.	50 H.P.	60 H.P.
Rated Amp.	80 AMP.	105 AMP.	120 AMP.
Rated K.W.	30 K.W.	37 K.W.	45 K.W.
Rated Voltage	440 V.A.C. 50 Hz.	440 V.A.C. 50 Hz.	440 V.A.C. 50 Hz.
H.V. Test For 30 Sec.	2 K.V.A.	2 K.V.A.	2 K.V.A.
Leakage Current	2 x 0.3mA	2 x 0.3mA	2 x 0.3mA
Temparature Rise	45° To 50°c	45° To 50°c	45° To 50°c
Insulation Resistance	>300M ohm	>300M ohm	>300M ohm
At 500 V.D.C.

Product Code	FI-008A	FI-008B
Rated H.P.	75 H.P.	100 H.P.
Rated Amp.	150 AMP.	175 AMP.
Rated K.W.	55 K.W.	75 K.W.
Rated Voltage	440 V.A.C. 50 Hz.	440 V.A.C. 50 Hz.
H.V. Test For 30 Sec.	2 K.V.A.	2 K.V.A.
Leakage Current	2 x 0.3mA	2 x 0.3mA
Temparature Rise	45° To 50°c	45° To 50°c
Insulation Resistance	>300M ohm	>300M ohm
At 500 V.D.C.

Product Code	FI-009A
Rated H.P.	125 H.P.
Rated Amp.	200 AMP.
Rated K.W.	90 K.W.
Rated Voltage	440 V.A.C. 50 Hz.
H.V. Test For 30 Sec.	2 K.V.A.
Leakage Current	2 x 0.3mA
Temparature Rise	45° To 50°c
Insulation Resistance	>300M ohm
At 500 V.D.C.

Product Code	FI-010A
Rated H.P.	150 H.P.
Rated Amp.	250 AMP.
Rated K.W.	110 K.W.
Rated Voltage	440 V.A.C. 50 Hz.
H.V. Test For 30 Sec.	2 K.V.A.
Leakage Current	2 x 0.3mA
Temparature Rise	45° To 50°c
Insulation Resistance	>300M ohm
At 500 V.D.C.

Product Code	FI-011A	FI-011B
Rated H.P.	175 H.P.	215 H.P.
Rated Amp.	285 AMP.	320 AMP.
Rated K.W.	132 K.W.	160 K.W.
Rated Voltage	440 V.A.C. 50 Hz.	440 V.A.C. 50 Hz.
H.V. Test For 30 Sec.	2 K.V.A.	2 K.V.A.
Leakage Current	2 x 0.3mA	2 x 0.3mA
Temparature Rise	45° To 50°c	45° To 50°c
Insulation Resistance	>300M ohm	>300M ohm
At 500 V.D.C.

Product Code	FI-008A	FI-008B
Rated H.P.	250 H.P.	300 H.P.
Rated Amp.	400 AMP.	500 AMP.
Rated K.W.	185 K.W.	220 K.W.
Rated Voltage	440 V.A.C. 50 Hz.	440 V.A.C. 50 Hz.
H.V. Test For 30 Sec.	2 K.V.A.	2 K.V.A.
Leakage Current	2 x 0.3mA	2 x 0.3mA
Temparature Rise	45° To 50°c	45° To 50°c
Insulation Resistance	>300M ohm	>300M ohm
At 500 V.D.C.
