RFI/EMI FILTERS

Femina Instrument Pvt.Ltd. is manufacturer of RFI (Radio Frequency Interference) EMI (Electromagnetic Interference) RFI/EMI Filters will suppress the interference created by other equipment and the interference of the module or system itself, with the desired result being improvement to the immunity from EMI signals in the surrounding setting. RFI/EMI Filters are available in different configurations (Single phase - chassis mountable, PCB mountable, Panel mountable, Three phase - with screw Terminals / with bus-bar terminals). RFI/EMI Filter works by presenting a significantly higher resistance to higher frequency content. The final result of the RFI/EMI Filter is reduces and attenuates the unwanted signal strength, thereby having a minimum effect on other components or devices.

PCB MOUNT SINGLE PHASE

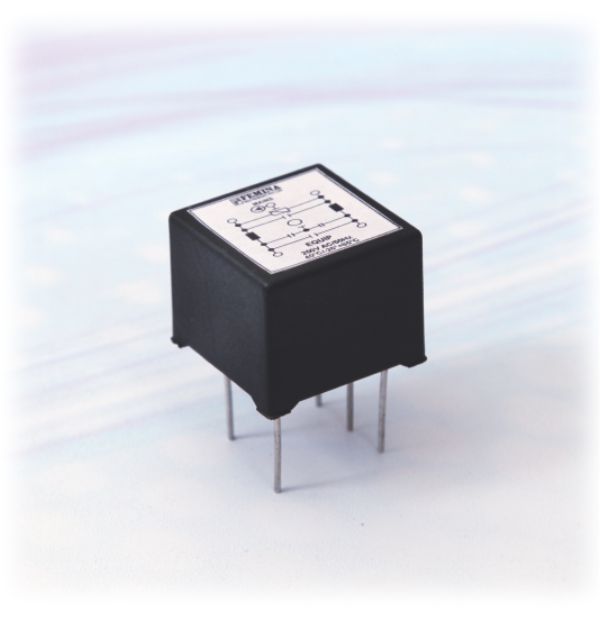

Product Code	FIF 301-3	FIF 301-6	FIF 301-10
Rated Amp.	3 AMP.	6 AMP.	10 AMP.
Rated Voltage	250 To 300 VAC at 50Hz	250 To 300 VAC at 50Hz	250 To 300 VAC at 50Hz
H.V Test for 30 Sec.	N/A ABS BODY	N/A ABS BODY	N/A ABS BODY
Leakage Current	2 x 0.3mA	2 x 0.3mA	2 x 0.3mA
Temparature rise	45° To 50°c	45° To 50°c	45° To 50°c
Insulation
Resistance	>300M ohm	>300M ohm	>300M ohm
At 500 V.D.C.

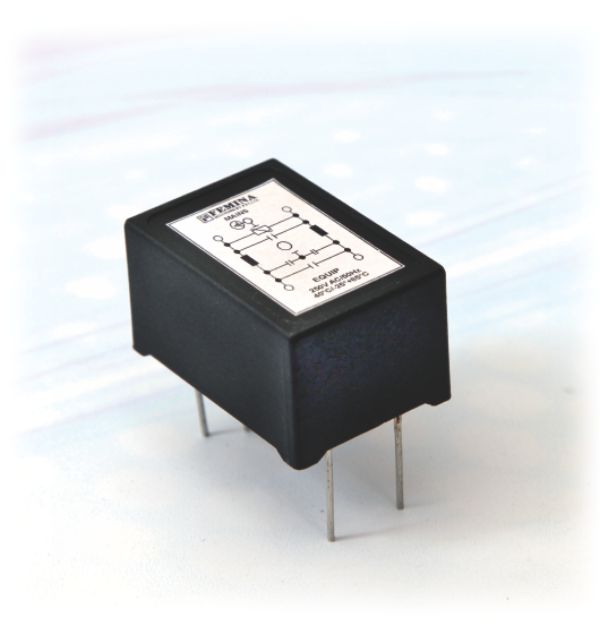

Product Code	FIF 302-3	FIF 302-6	FIF 302-10
Rated Amp.	3 AMP.	6 AMP.	10 AMP.
Rated Voltage	250 To 300 VAC at 50Hz	250 To 300 VAC at 50Hz	250 To 300 VAC at 50Hz
H.V Test for 30 Sec.	N/A ABS BODY	N/A ABS BODY	N/A ABS BODY
Leakage Current	2 x 0.3mA	2 x 0.3mA	2 x 0.3mA
Temparature rise	45° To 50°c	45° To 50°c	45° To 50°c
Insulation
Resistance	>300M ohm	>300M ohm	>300M ohm
At 500 V.D.C.
