TECHNICAL SPECIFICATION

ADVANTAGE OF FEMINA INPUT LINE CHOKE COMPARE TO REGULAR LAMINATION INPUT LINE CHOKE

Sr.No.	PARAMETER	FEMINA CHOKE	LAMINATION CHOKE
1	EMI FILTER	YES	NO
2	NOISE FILTER	YES	NO
3	SPIKE PROTECTION	YES	NO
4	WINDING	SILVER TEFLON	ENEMELD COPPER
5	TECHNOLOGY	FERRITE CORE BASE	LAMINATION BASE
6	SIZE	COMPACT	BULKY
7	WEIGHT	LIGHT	HEAVY
8	ENCLOSURE	ENCAPSULATION IN ABS/	METAL BOX OPEN
9	CONNECTOR (CONNECTWELL OR WAGO)	HEAVY DUTY COLORED	BAKELITE
10	PACKING (MODEL WISE)	PRINTED CORRUGATED BOX	OPEN-NO PACKING

INPUT LINE FILTER CHOKE SALIENT FEATURES:

	Variable Speed Drive AC/DC/Servo-Drives PLC
	Engineering Controllers
	NC-CNC Machine tools
	Plastic forming & packing machines
	Automatic Textile machines
	Overhead Crane
	Pharmaceutical machines
	Elevators
	Laser Machines
	Total Automised Machinery Application

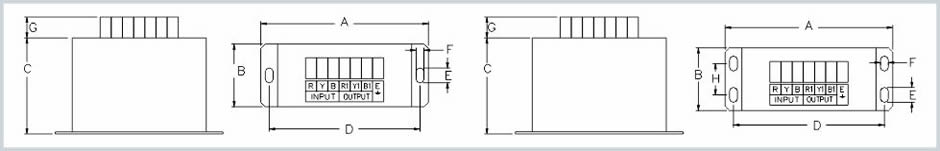

MOUNTING DIAGRAM, DIMENSIONS & WEIGHT

MODEL	A	B	C	D	E	F	G	H	APX. WT. KG.
FI-001	90 MM	80 MM	70 MM	83 MM	10 MM	5 MM	20 MM	-	0.5
FI-002	90 MM	90 MM	85 MM	83 MM	10 MM	5 MM	25 MM	-	0.75
FI-003	122 MM	80 MM	70 MM	123 MM	10 MM	5 MM	20 MM	-	0.75
FI-004	122 MM	90 MM	85 MM	123 MM	10 MM	5 MM	25 MM	-	1.1
FI-005	175 MM	70 MM	85 MM	160 MM	10 MM	5 MM	60 MM	-	2.6
FI-006	210 MM	80 MM	95 MM	195 MM	10 MM	5 MM	60 MM	-	4.4
FI-007	240 MM	90 MM	110 MM	225 MM	10 MM	5 MM	50 MM	65 MM	7.5
FI-008	250 MM	90 MM	140 MM	230 MM	10 MM	10 MM	50 MM	65 MM	9.2
FI-009	320 MM	100 MM	170 MM	300 MM	10 MM	10 MM	55 MM	65 MM	15.1
FI-010	320 MM	100 MM	190 MM	300 MM	10 MM	10 MM	55 MM	65 MM	16.5

Note : Specifications are subject to change without prior notice for further upgradation.
