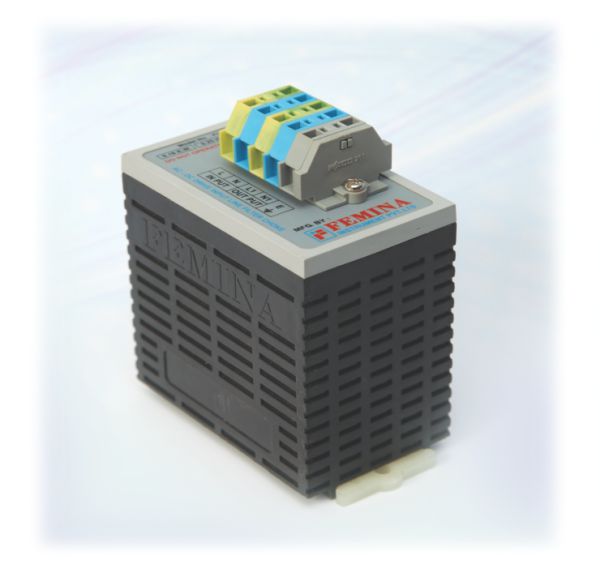

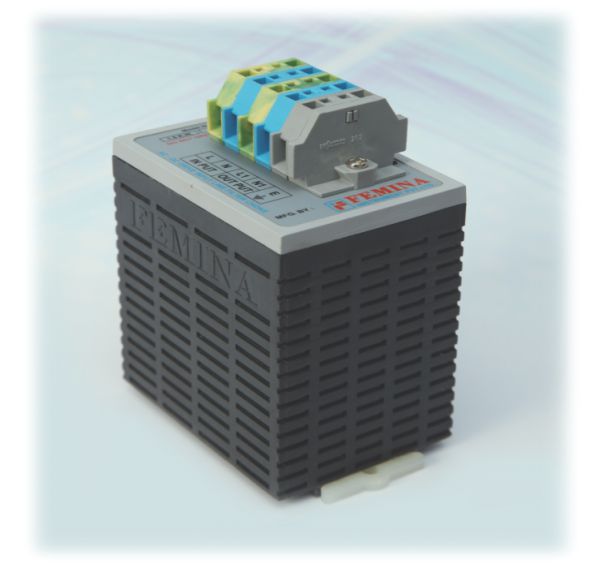

SINGLE PHASE CHANEL MOUNT |
| |
|
| Product Code |
FI-001A |
FI-001B |
FI-001C |
Rated H.P.
|
0.25 H.P.
|
0.50 H.P.
|
1 H.P.
|
Rated Amp.
|
3 AMP.
|
5 AMP.
|
8 AMP.
|
Rated K.W.
|
0.18 K.W.
|
0.37 K.W.
|
0.75 K.W.
|
Rated Voltage
|
230 V.A.C. 50
|
230 V.A.C. 50 Hz. |
230 V.A.C. 50 Hz.
|
H.V. Test For 30
|
N/A ABS BODY |
N/A ABS BODY |
N/A ABS BODY
|
Leakage Current
|
2 x 0.3mA
|
2 x 0.3mA
|
2 x 0.3mA
|
Temparature rise
|
45° To 50°c
|
45° To 50°c
|
45° To 50°c
|
Insulation Resistance
|
>300M ohm |
>300M ohm |
>300M ohm |
| At 500 V.D.C. |
|
|
|
|
| |
|
|
|
|
| Product Code |
FI-002A |
FI-002B |
FI-002C |
| Rated H.P. |
2 H.P. |
3 H.P. |
5 H.P. |
| Rated Amp. |
11 AMP. |
16 AMP. |
22 AMP. |
| Rated K.W. |
1.5 K.W. |
2.5 K.W. |
3.7 K.W. |
| Rated Voltage |
230 V.A.C. 50 Hz. |
230 V.A.C. 50 Hz. |
230 V.A.C. 50 Hz. |
| H.V. Test For 30 Sec. |
N/A ABS BODY |
N/A ABS BODY |
N/A ABS BODY |
| Leakage Current |
2 x 0.3mA |
2 x 0.3mA |
2 x 0.3mA |
| Temparature rise |
45° To 50°c |
45° To 50°c |
45° To 50°c |
| Insulation Resistance |
>300M ohm |
>300M ohm |
>300M ohm |
| At 500 V.D.C. |
|
|
|
|
