RFI/EMI FILTERS

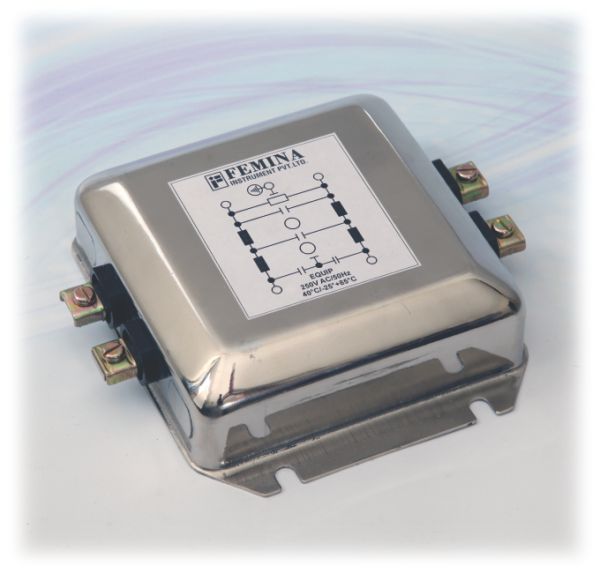

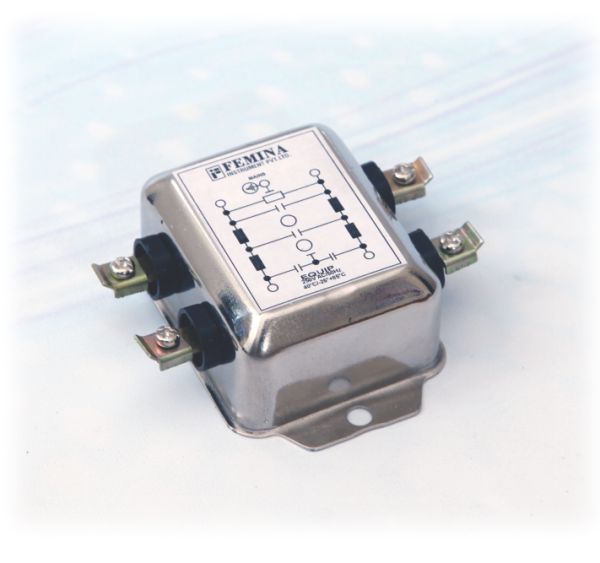

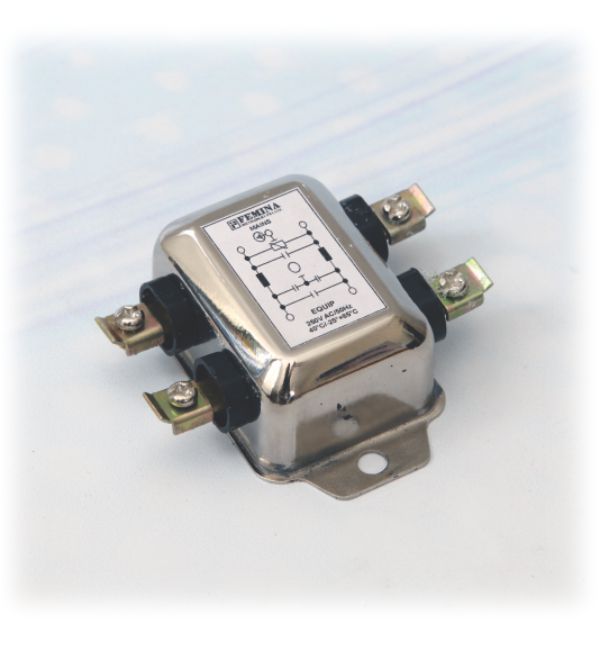

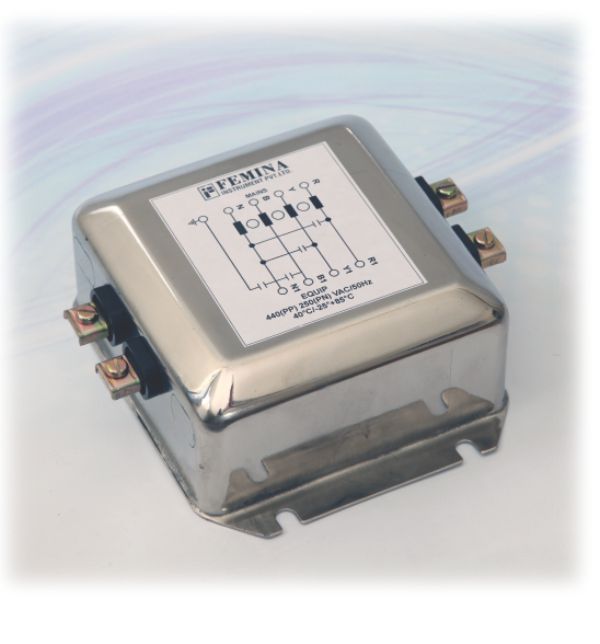

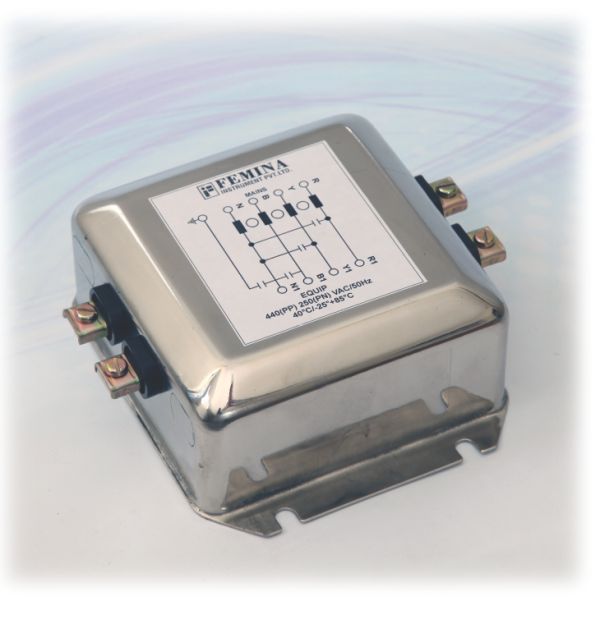

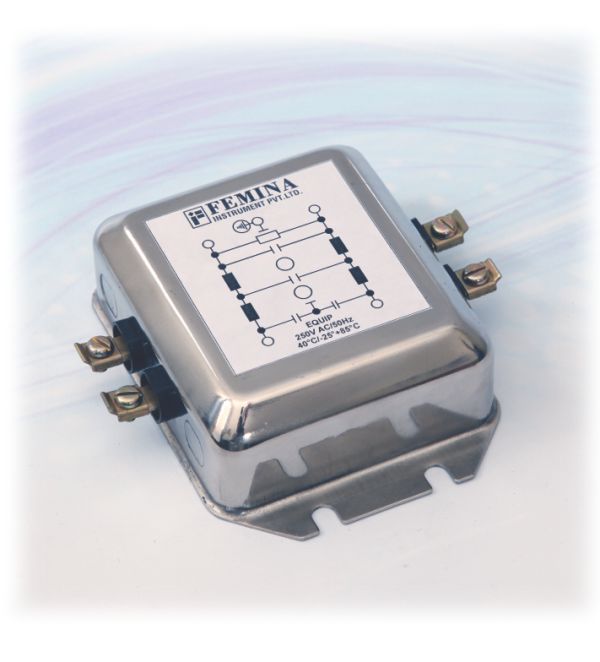

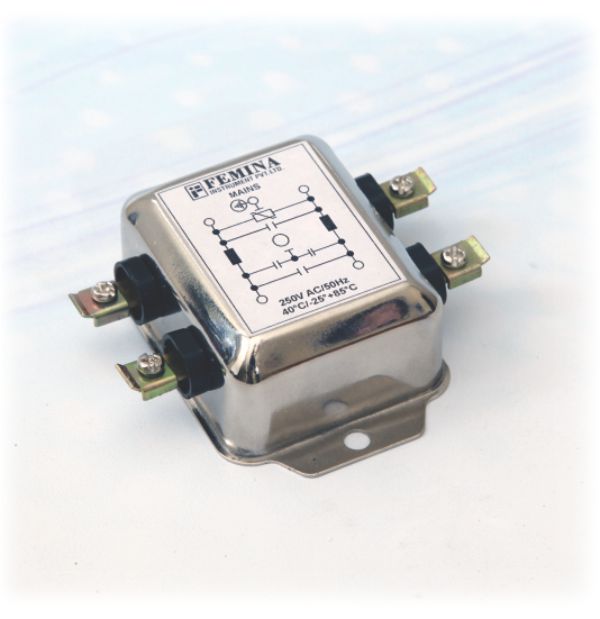

CHASIS MOUNT

Product Code	FIF 303-3	FIF 303-6	FIF 303-10	FIF 303-15
Rated Amp.	3 AMP.	6 AMP.	10 AMP.	15 AMP.
Rated Voltage	250 To	250 To	250 To	250 To
	300 VAC at 50Hz	300 VAC at 50Hz	300 VAC at 50Hz	300 VAC at 50Hz
H.V Test for 30 Sec.	2.0 KVAC	2.0 KVAC	2.0 KVAC	2.0 KVAC
Leakage Current	2 x 0.3mA	2 x 0.3mA	2 x 0.3mA	2 x 0.3mA
Temparature Rise	45° To 50°c	45° To 50°c	45° To 50°c	45° To 50°c
Insulation
Resistance	>300M ohm	>300M ohm	>300M ohm	>300M ohm
At 500 V.D.C.

Product Code	FIF 304-6	FIF 304-10	FIF 304-15	FIF 304-20
Rated Amp.	6 AMP.	10 AMP.	15 AMP.	20 AMP.
Rated Voltage	250 To	250 To	250 To	250 To
	300 VAC at 50Hz	300 VAC at 50Hz	300 VAC at 50Hz	300 VAC at 50Hz
H.V Test for 30 Sec.	2.0 KVAC	2.0 KVAC	2.0 KVAC	2.0 KVAC
Leakage Current	2 x 0.3mA	2 x 0.3mA	2 x 0.3mA	2 x 0.3mA
Temparature Rise	45° To 50°c	45° To 50°c	45° To 50°c	45° To 50°c
Insulation
Resistance	>300M ohm	>300M ohm	>300M ohm	>300M ohm
At 500 V.D.C.

Product Code	FIF 305-3	FIF 305-6	FIF 305-10	FIF 305-15
Rated Amp.	3 AMP.	6 AMP.	10 AMP.	15 AMP.
Rated Voltage	250 To	250 To	250 To	250 To
	300 VAC at 50Hz	300 VAC at 50Hz	300 VAC at 50Hz	300 VAC at 50Hz
H.V Test for 30 Sec.	2.0 KVAC	2.0 KVAC	2.0 KVAC	2.0 KVAC
Leakage Current	2 x 0.3mA	2 x 0.3mA	2 x 0.3mA	2 x 0.3mA
Temparature Rise	45° To 50°c	45° To 50°c	45° To 50°c	45° To 50°c
Insulation
Resistance	>300M ohm	>300M ohm	>300M ohm	>300M ohm
At 500 V.D.C.

Product Code	FIF 306-3	FIF 306-6	FIF 306-10	FIF 306-15
Rated Amp.	6 AMP.	10 AMP.	15 AMP.	20 AMP.
Rated Voltage	250 To	250 To	250 To	250 To
	300 VAC at 50Hz	300 VAC at 50Hz	300 VAC at 50Hz	300 VAC at 50Hz
H.V Test for 30 Sec.	2.0 KVAC	2.0 KVAC	2.0 KVAC	2.0 KVAC
Leakage Current	Nil	Nil	Nil	Nil
Temparature Rise	45° To 50°c	45° To 50°c	45° To 50°c	45° To 50°c
Insulation
Resistance	>300M ohm	>300M ohm	>300M ohm	>300M ohm
At 500 V.D.C.

Product Code	FIF 307-20	FIF 307-30	FIF 307-40
Rated Amp.	20 AMP.	30 AMP.	40 AMP.
Rated Voltage	250 To 300 VAC at 50Hz	250 To 300 VAC at 50Hz	250 To 300 VAC at 50Hz
H.V Test for 30 Sec.	2.0 KVAC	2.0 KVAC	2.0 KVAC
Leakage Current	2 x 0.3mA	2 x 0.3mA	2 x 0.3mA
Temparature rise	45° To 50°c	45° To 50°c	45° To 50°c
Insulation
Resistance	>300M ohm	>300M ohm	>300M ohm
At 500 V.D.C.

Product Code	FIF 308-50	FIF 308-60	FIF 308-80
Rated Amp.	50 AMP.	60 AMP.	80 AMP.
Rated Voltage	250 To 300 VAC at 50Hz	250 To 300 VAC at 50Hz	250 To 300 VAC at 50Hz
H.V Test for 30 Sec.	2.0 KVAC	2.0 KVAC	2.0 KVAC
Leakage Current	2 x 0.3mA	2 x 0.3mA	2 x 0.3mA
Temparature rise	45° To 50°c	45° To 50°c	45° To 50°c
Insulation
Resistance	>300M ohm	>300M ohm	>300M ohm
At 500 V.D.C.

Product Code	FIF 309-100	FIF 309-120	FIF 309-150
Rated Amp.	100 AMP.	120 AMP.	150 AMP.
Rated Voltage	250 To 300 VAC at 50Hz	250 To 300 VAC at 50Hz	250 To 300 VAC at 50Hz
H.V Test for 30 Sec.	2.0 KVAC	2.0 KVAC	2.0 KVAC
Leakage Current	2 x 0.3mA	2 x 0.3mA	2 x 0.3mA
Temparature rise	45° To 50°c	45° To 50°c	45° To 50°c
Insulation
Resistance	>300M ohm	>300M ohm	>300M ohm
At 500 V.D.C.
